Safe, continuous gravity-driven transport of parcels, bags, cartons and packaged products between different elevations.

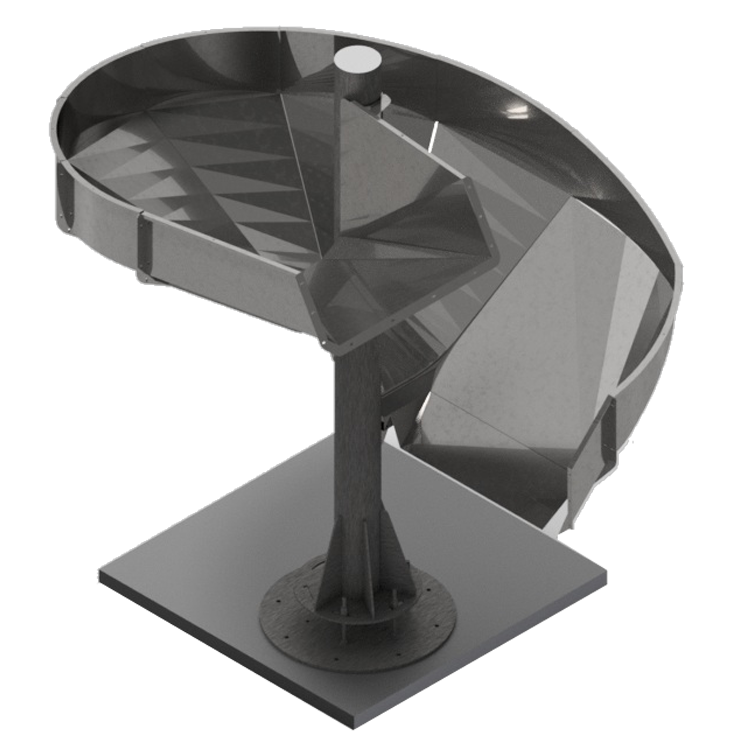

The Mechanica Sistemi Spiral Chute Series 9031 is engineered for the safe and continuous gravity-driven transport of parcels, bags, cartons, and packaged products between different elevations. Designed according to the proprietary Safe Glide feature, the chute maintains a controlled and constant sliding speed, minimizing item impact and preserving package integrity throughout the descent.
Unlike conventional gravity chutes, the Series 9031 automatically adapts the sliding path according to product characteristics — ensuring a controlled and nearly constant sliding speed regardless of chute height.
Unlike conventional gravity chutes, the Spiral Chute Series 9031 automatically adapts the sliding path according to product characteristics. Lightweight or high-friction products follow a shorter path with a steeper inclination; heavier or low-friction products follow a longer path with a reduced inclination. This ensures a controlled and nearly constant sliding speed regardless of chute height — minimizing item impact and preserving package integrity throughout the descent.
Modular 30° and 45° sections allow flexible height configurations, easy integration into existing facilities and suitability for various elevation differences and layouts. Intermediate modules weigh less than 25 kg; modules are connected using six bolts per section, quick-lock hooks secure them to the central support pole, and an adjustable base plate simplifies leveling and installation. Sliding surfaces are manufactured entirely from AISI 304 stainless steel on a robust painted steel support structure, designed for intensive industrial operation and long service life.
| Parameter | Value |
|---|---|
| Model | Series 9031 |
| Central Pole Diameter (mm) | 221 |
| Overall Diameter (mm) | 2900 |
| Sliding Bed Width (mm) | 1300 |
| Side Guard Height (mm) | 350 |
| Sliding Surface Material | Stainless Steel AISI 304, 2 mm |
| Support Structure | Painted Steel Sheet, 10 mm |
| Ground Fixing Plate | Painted Steel Sheet, 15 mm |
| Surface Finish | Epoxy Powder Coating |
All dimensions in millimetres unless stated. Specifications subject to change without notice.
Automatically adapts the sliding path according to product characteristics: lightweight or high-friction products follow a shorter, steeper path; heavier or low-friction products a longer path with reduced inclination — a controlled, nearly constant sliding speed regardless of chute height.
Modular 30° and 45° sections allow flexible height configurations, easy integration into existing facilities and suitability for various elevation differences and layouts.
Sliding surfaces manufactured entirely from AISI 304 stainless steel on a robust painted steel support structure — designed for intensive industrial operation and long service life.
Intermediate modules weigh less than 25 kg and connect with six bolts per section. Quick-lock hooks secure modules to the central support pole and an adjustable base plate simplifies leveling and installation.
Controlled product descent without external power, with reduced product damage and impact — suitable for parcels, bags, cartons and packaged goods.
Low maintenance requirements, fast and easy installation, a modular and scalable design and durable stainless-steel sliding surfaces.
Datasheets and CAD models are supplied on request — send us your project details and our engineers will share the documentation for your configuration.
