High-efficiency alignment system
Tilted rollers and a motorised vertical belt hold consistent left-side alignment, reaching up to 99.5% accuracy with stable gaps at both infeed and outfeed.
99.5% ACCURACY
Click the image to zoom
Conveyor Modules · Alignment platform
TYPE 9073

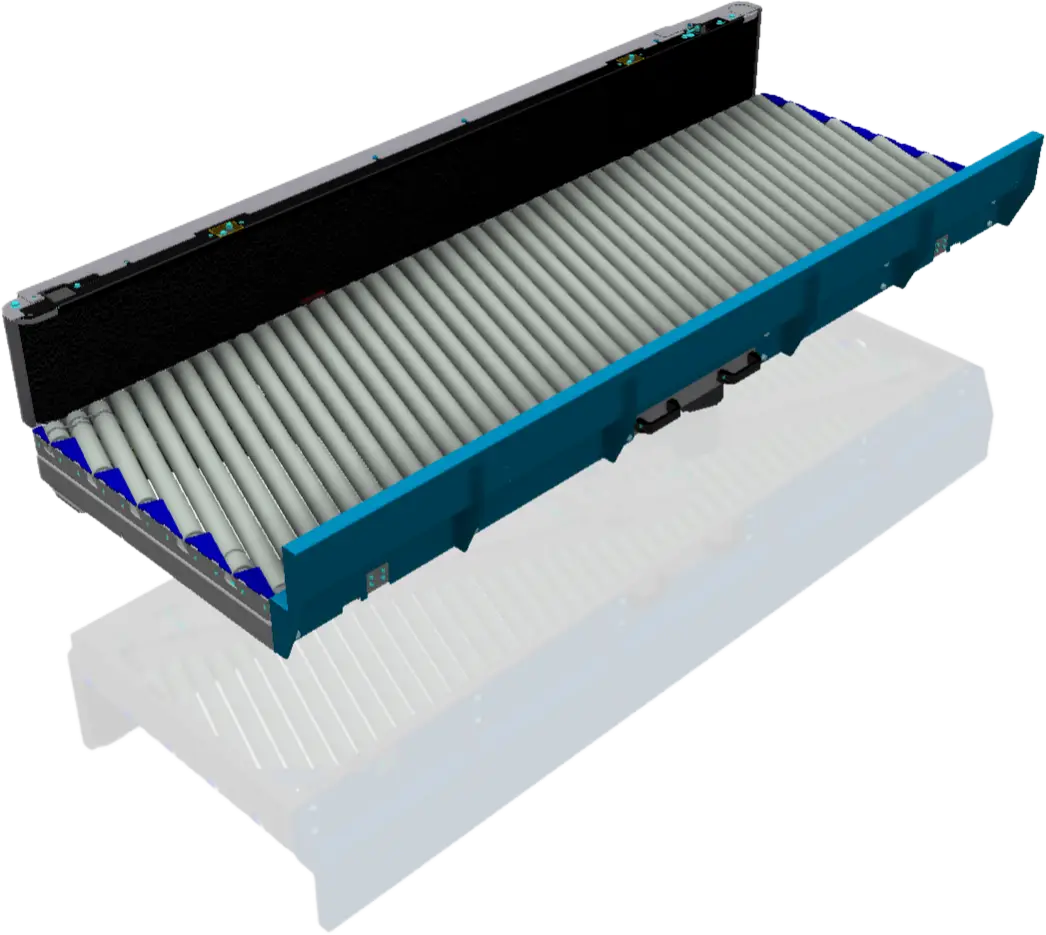

Parcel Aligner
Consistent left-side alignment at high throughput, with stable gaps in and out.
The Aligner Type 9073 is a next-generation alignment module engineered for modern parcel sorting plants requiring high accuracy, controlled product flow and robust mechanical reliability. Tilted rollers, a motorised vertical belt and a reinforced steel frame work together to hold consistent left-side alignment under high-throughput conditions — reaching up to 99.5% alignment accuracy while maintaining stable gaps at both infeed and outfeed.
99.5%
Alignment accuracy
2 widths
850 – 1,050 mm
2.4 m/s
Rollers & belt speed
20°
Roller inclination
≤70 dBA
Noise level
50 kg/m
Transport load
Key differentiator
Up to 99.5% alignment accuracy with stable gaps preserved at both infeed and outfeed — the scanner downstream reads what it is given, first time, at full line rate.
High-efficiency alignment
Tilted rollers and a driven vertical belt
Rollers inclined at 20° carry the parcel toward a motorised vertical belt, which squares it against the reference edge — together delivering up to 99.5% alignment accuracy under high-throughput conditions, while holding stable gaps at both infeed and outfeed. Two standard working widths of 850 and 1,050 mm are available in left- or right-hand configuration, on conveyor lengths of 2,600 and 3,000 mm.
- 99.5%Alignment accuracy
- 20°Roller inclination
- 1,000Max aligner height (mm)
Engineered for uptime
Fewer parts, faster service, less downtime
A reinforced steel frame carries standardised components driven from a unified drive station, cutting the component count and simplifying the spares pool. Quick-release service mechanisms and advanced preventive-maintenance safeguards keep interventions short and planned. Rollers and belt run to 2.4 m/s at 50 kg/m and ≤ 70 dBA, on 2-layer antistatic belt material (Ammeraal / Habasit) with a flame-retardant option.
- 2.4 m/sRollers & belt speed
- ≤70 dBAEmpty, constant speed
- 2,600 – 3,000Conveyor length (mm)
Model 9073 specifications
Technical detail
| Specification | 850 mm | 1,050 mm |
|---|---|---|
| Available standard working width, LH or RH (mm) | 850 | 1,050 |
| Conveyor length (mm) | 2,600 | 3,000 |
| Aligner height H (mm) | 1,000 max | |
| Roller inclination angle | 20° | |
| Transport load | 50 kg/m | |
| Rollers & belt speed | Maximum 2.4 m/s | |
| Noise level (empty, constant speed) | ≤ 70 dBA | |
| Belt material | 2-layer & antistatic (Ammeraal / Habasit); flame-retardant option available | |
| Compliance | CE Machinery Directive · ISO/EN safety standards | |
Transport load refers to an evenly distributed load along the conveying surface. All dimensions in millimetres unless stated. Specifications subject to change without notice.
Modular & flexible engineering
Two standard working widths in left- or right-hand configuration, on 2,600 or 3,000 mm conveyor lengths, adapt the module to the layout rather than the reverse.
Unified drive station
Standardised components on a single drive station reduce the total part count — a smaller spares pool, one electrical standard and simpler troubleshooting.
Advanced maintainability
Quick-release service mechanisms and preventive-maintenance safeguards keep interventions short and planned, so servicing does not become a line shutdown.
Structural reliability & safety
A reinforced steel frame holds geometry and alignment under continuous high-throughput duty, compliant with the CE Machinery Directive and ISO/EN safety standards.
Proven long-term durability
Built for continuous duty at 50 kg/m and 2.4 m/s, at a noise level of ≤ 70 dBA — quiet enough to run adjacent to manned workstations.
Parcel & postal sorting centres
Squaring parcels to the reference edge ahead of sortation.
Logistics & distribution hubs
High-capacity networks needing precise, repeatable alignment.
Pre-sort, merge & scanning lines
Presenting a squared, gapped product to the scanner first time.
Side-alignment & stable spacing
Any system requiring accurate side alignment with gaps preserved.
Technical datasheetPDF · on request
CAD / STEP model3D · on request
Products cataloguePDF · full range
Datasheets and CAD models are supplied on request — send us your project details and our engineers will share the documentation for your configuration.
Combine freely
Related conveyor modules
Every module shares one frame logic and drive concept — build the 9073 into a complete line.
TYPE 9015
Conveyor Modules

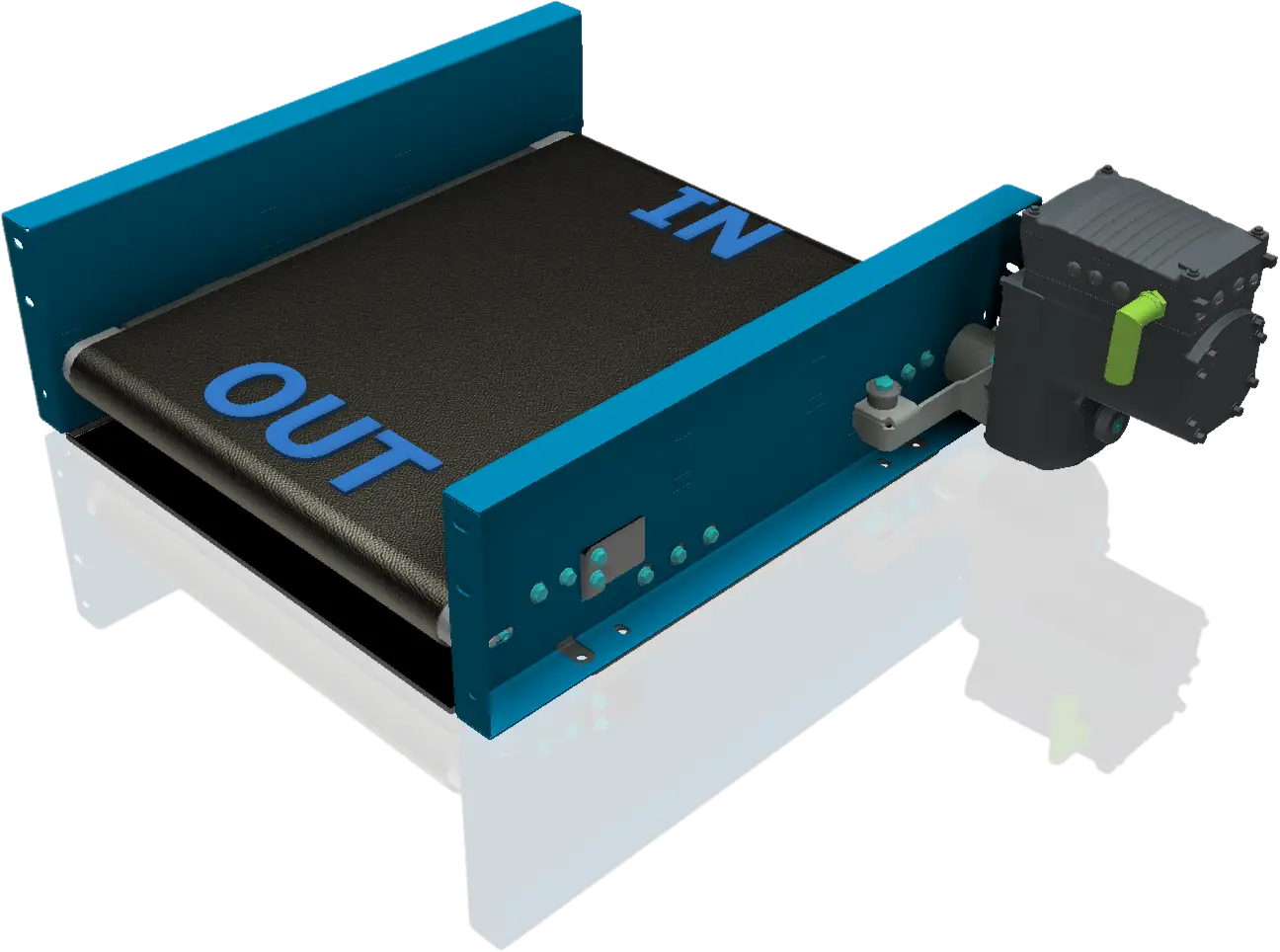

Belt Conveyors Gappex
Sets the gap the aligner then preserves through to the scanner.
View product
TYPE 9070
Conveyor Modules

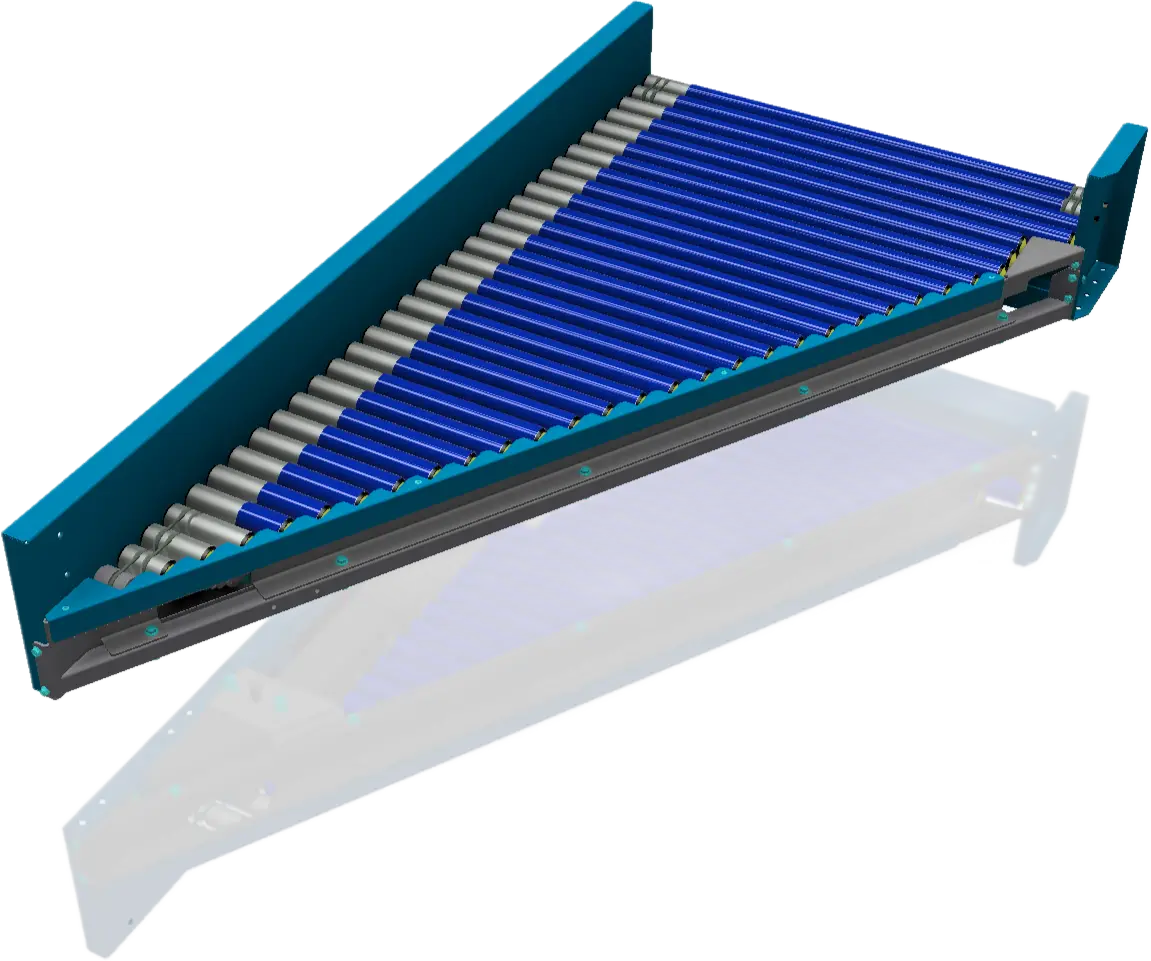

Roller Merge
Inducts parcels onto the collector line ahead of alignment.
View product
TYPE 9071
Conveyor Modules

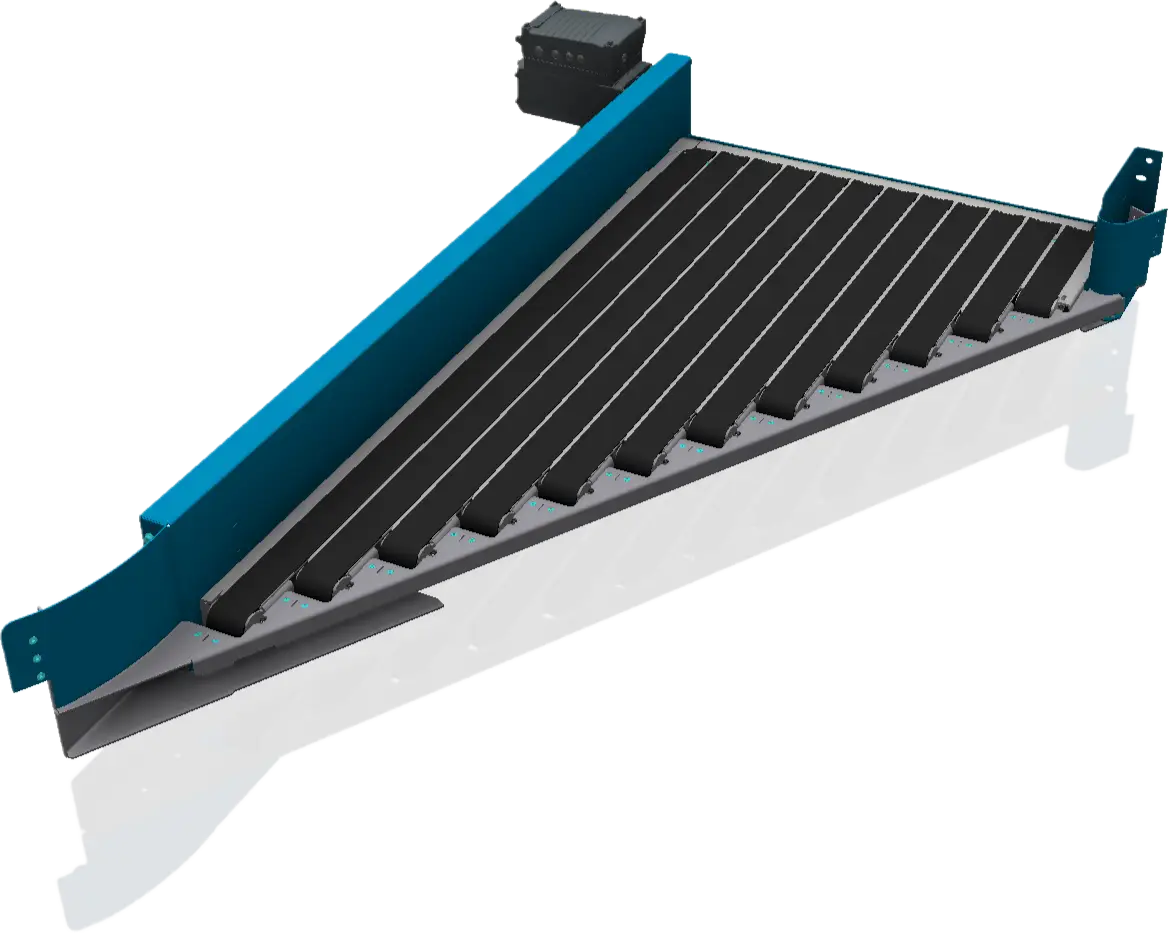

Belt Merge / Diverge
