Flexibility
Single, two and three-conveyor configurations adapt to each airport's check-in process, all built from the same 1,200 mm minimum belt.
1 · 2 · 3 BELT
Click the image to zoom
Conveyor Modules · Check-in platform

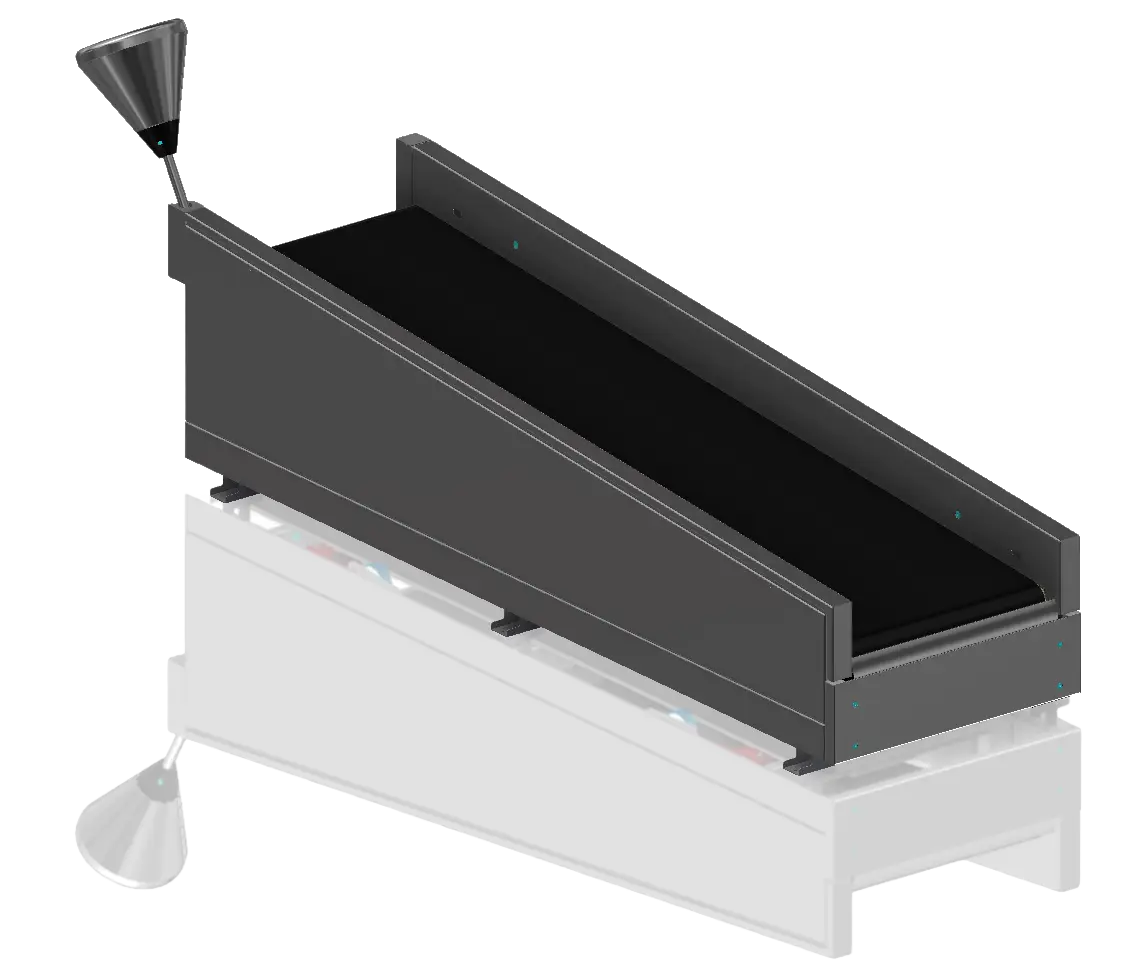

TYPE 9025
Check-in Conveyor Belts
Weighing, labelling and dispatching — split across one, two or three belts.
The Check-in Conveyor Belts Type 9025 is a robust and flexible solution widely used in airports, customisable to meet specific operational requirements. A single conveyor performs weighing, labelling and dispatching onto the take-away system; a two-conveyor set separates weighing and labelling from dispatching; a three-conveyor set gives each function its own belt — so the desk layout follows the airport's check-in process rather than the other way round.
1 · 2 · 3
Belt configurations
1,200 mm
Min belt length
≤60 dBA
Noise level
588 mm
Internal guard width
1,188 mm
Double check-in width
α = 6°
Max inclination
Key differentiator
The quietest module in the range at ≤ 60 dBA, with side guards profiled differently on the passenger and take-away sides — because this is the one conveyor a passenger stands next to.
Configured to the desk
One belt, two or three — you choose the split
A single conveyor performs weighing, labelling and dispatching onto the take-away system in one position. A two-conveyor set puts weighing and labelling on the first belt and dispatching on the second. A three-conveyor set gives each function its own belt. Every configuration is built from the same 1,200 mm minimum belt, so the desk grows from 1,200 to 2,400 to 3,600 mm without a bespoke design.
- 1,2001-belt length (mm)
- 2,4002-belt length (mm)
- 3,6003-belt length (mm)
Passenger-facing by design
The quietest module in the range
This is the one conveyor a passenger stands beside, so it runs at ≤ 60 dBA — the lowest noise figure in the range. Side guards are profiled differently on each side: 280 mm on the passengers' side, 245 mm on the take-away side, across a 588 mm internal width, or 1,188 mm overall for a double check-in. A clean, accessible mechanical design keeps service fast and planned downtime short, on 2-layer antistatic belt material (Ammeraal / Habasit) with a flame-retardant option.
- ≤60 dBAEmpty, constant speed
- 280Passenger-side guard (mm)
- 245Take-away side guard (mm)
Model 9025 specifications
Technical detail
| Specification | 1-belt | 2-belt | 3-belt |
|---|---|---|---|
| Min belt length (mm) | 1,200 | 2,400 | 3,600 |
| Composition | 1 × 1,200 (min) | 2 × 1,200 (min) | 3 × 1,200 (min) |
| Functions | 1 × weighing, labelling & dispatching | 1 × weighing & labelling 1 × dispatching |
1 × weighing 1 × labelling 1 × dispatching |
| Internal side guard width (mm) | 588 | ||
| Overall width of double check-in (mm) | 1,188 | ||
| Side guard height — passengers' side (mm) | 280 | ||
| Side guard height — take-away side (mm) | 245 | ||
| Maximum inclination | α = 6° | ||
| Noise level (empty, constant speed) | ≤ 60 dBA | ||
| Belt material | 2-layer & antistatic (Ammeraal / Habasit); flame-retardant option available | ||
| Compliance | CE Machinery Directive · ISO/EN safety standards | ||
All dimensions in millimetres unless stated. Specifications subject to change without notice.
Function split across belts
Weighing, labelling and dispatching onto the take-away system can share one belt or take one each — the split follows the desk workflow.
Passenger-facing side guards
Guards are profiled per side — 280 mm facing passengers, 245 mm on the take-away side — across a 588 mm internal width, or 1,188 mm for a double check-in.
Quiet operation
At ≤ 60 dBA this is the quietest module in the range — appropriate for a machine passengers stand next to for the length of a transaction.
Simplified maintenance
A clean, accessible mechanical design keeps service fast and planned downtime short — important at a desk that has to open on schedule.
Proven reliability
A robust solution widely used in airports, engineered for continuous check-in duty and compliant with the CE Machinery Directive and ISO/EN safety standards.
Airport check-in desks
The passenger-facing front end of the baggage handling system.
Weighing positions
Bag weight captured at the desk before the label is issued.
Labelling positions
Tag applied and read before the bag leaves the passenger's sight.
Dispatch to the take-away system
Handing the bag over to the main handling line downstream.
Technical datasheetPDF · on request
CAD / STEP model3D · on request
Products cataloguePDF · full range
Datasheets and CAD models are supplied on request — send us your project details and our engineers will share the documentation for your configuration.
