Versatile
Suited for make-up and reclaim duties, with straight and curved sectors that adapt to the space available rather than dictating the layout.
150 m+ MODULAR
Click the image to zoom
Functional Machines · Carousel platform
TYPE 9012

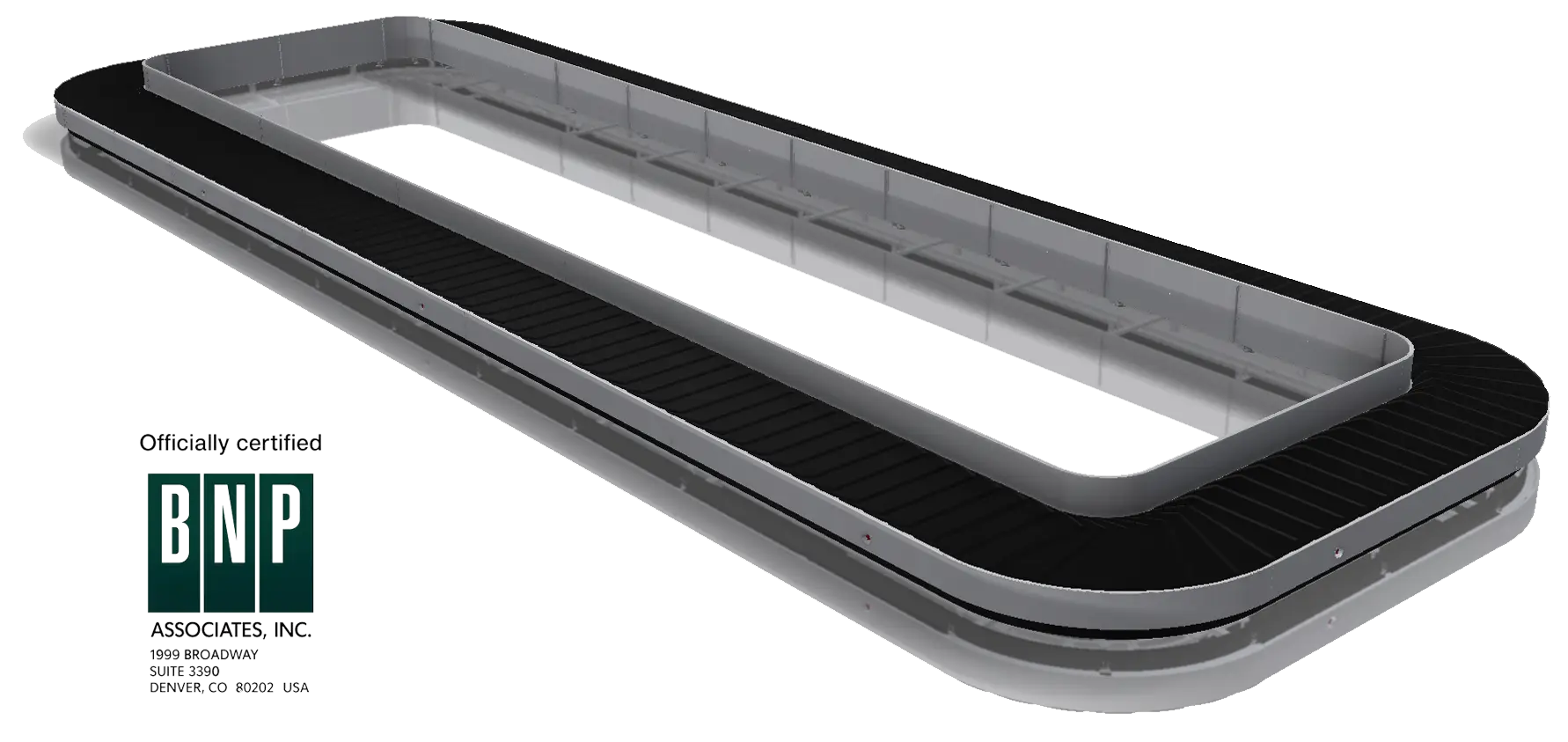

Flat Overlapping Carousel
Make-up or reclaim, assembled in modular sectors past 150 m.
The Flat Overlapping Carousel Type 9012 is a robust and reliable machine designed to meet the performance requirements of a modern sorting plant, transporting goods and baggage within specified size and weight ranges in automatic handling systems. The carousel is modular: assembled intermediate sectors accommodate configurations of over 150 m, in straight and curved runs, and the same platform is available as a make-up variant preparing baggage and packages for flights or as a reclaim variant for collection.
150 m+
Carousel length
200 kg/m
Max static load
150 kg/m
Max dynamic load
25–30
Slat speed (m/min)
≤60 dBA
Noise level
9°
Max incline / decline
Key differentiator
One overlapping-slat platform covers both duties — make-up and reclaim — and grows past 150 m by adding intermediate sectors, with straight and curved runs shaped to the space actually available.

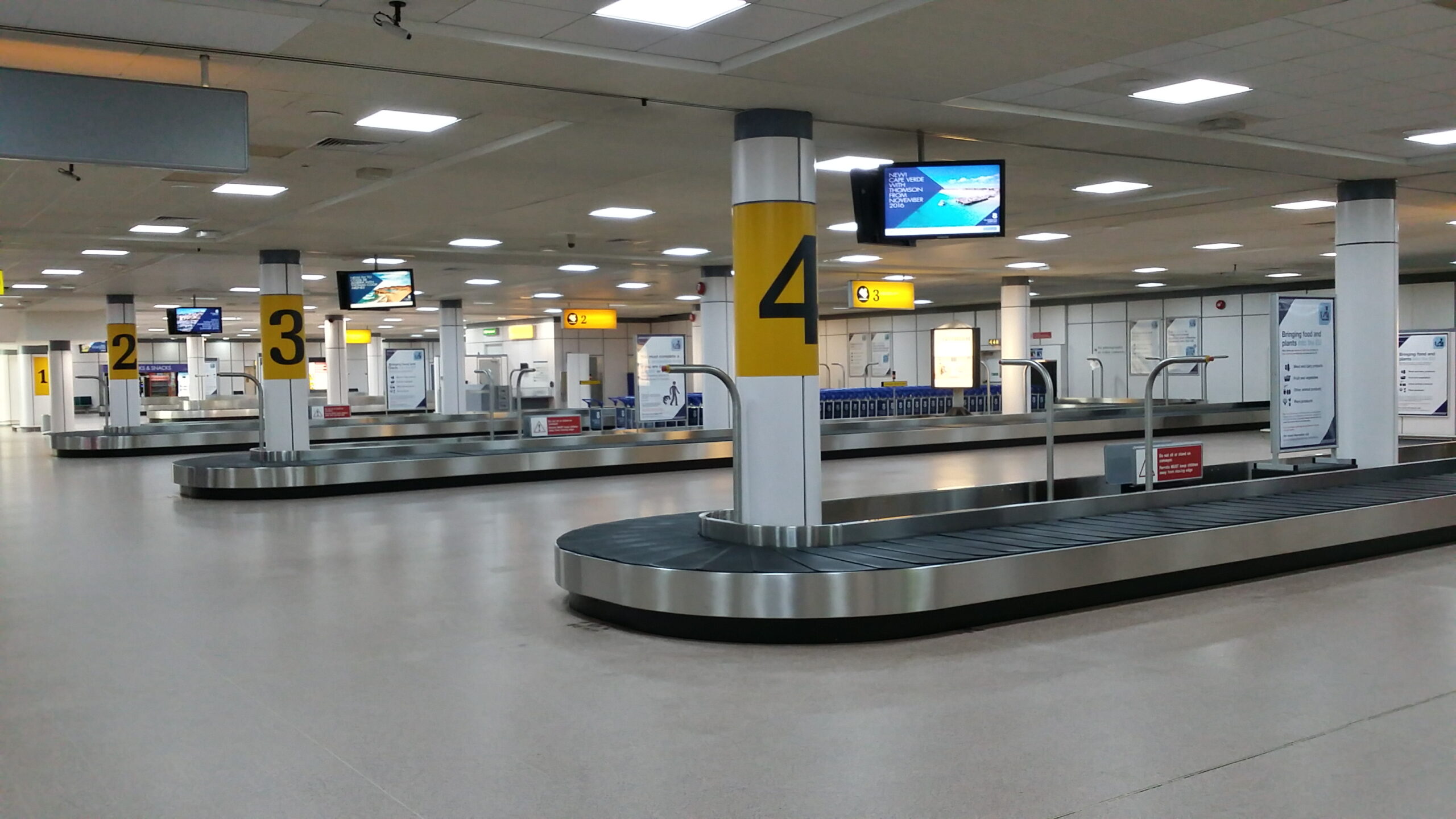

Reclaim variant
Quiet enough for the arrivals hall
As a reclaim carousel the 9012 stands in front of passengers, so it runs at ≤ 60 dBA with the conveyor empty at constant speed — the lowest noise figure in the range. Overlapping slats 1,020 mm wide run at 25–30 m/min across a 1,058 mm working width, from a minimum conveying height of 400 mm, on flame-retardant Laripur 6325 belt material.
- ≤60 dBAEmpty, constant speed
- 25–30Slat speed (m/min)
- 1,020Slat width (mm)

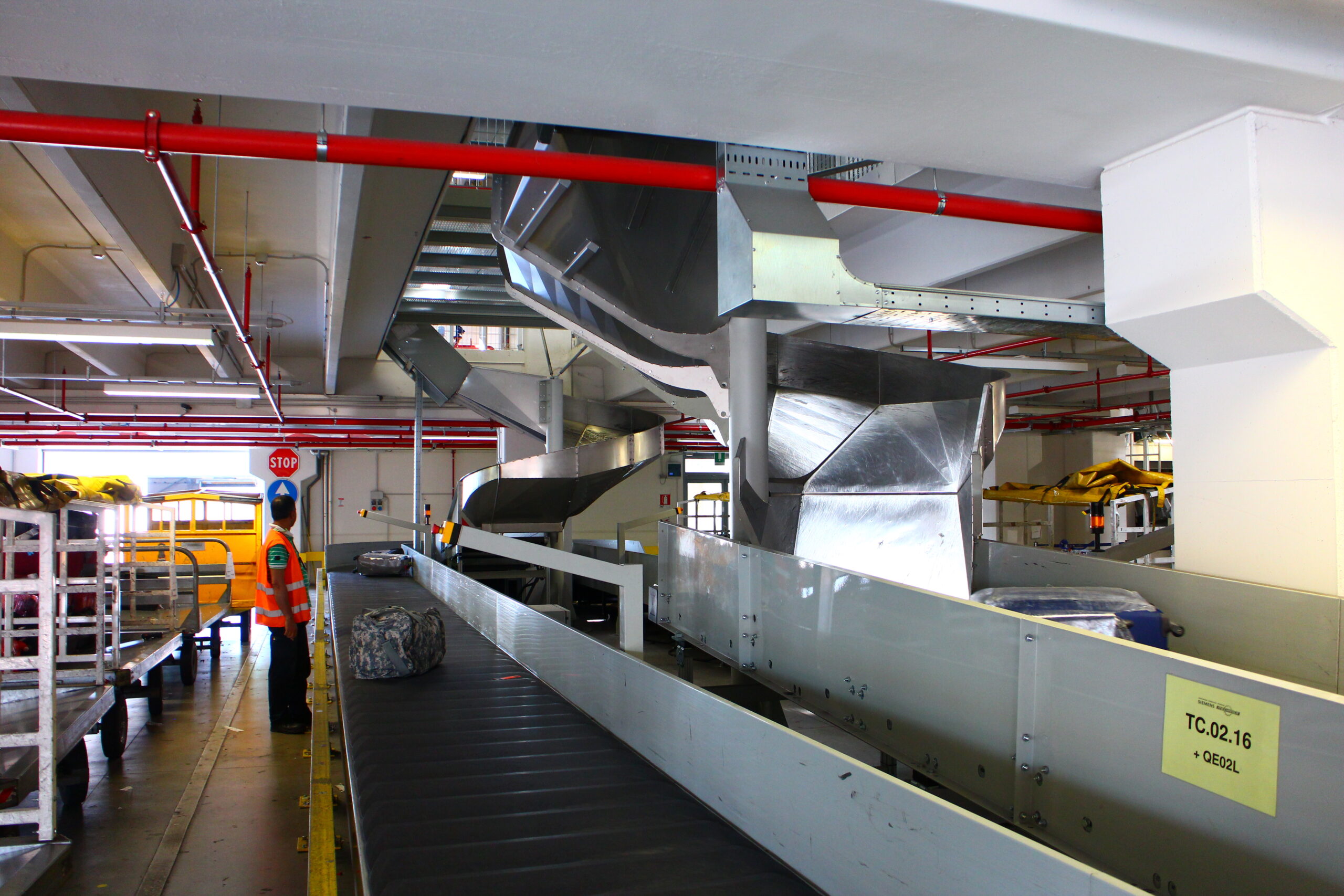

Make-up variant
Heavy duty, and as long as the hall allows
As a make-up carousel it prepares baggage and packages for flights, carrying up to 200 kg/m static and 150 kg/m dynamic load, with an operative average of 56 kg/m over the whole centre length. Modular construction means assembled intermediate sectors extend the run to over 150 m, in straight and curved sectors shaped to the space available, with inclines and declines to 9° — and fewer distinct spare parts to hold.
- 200 kg/mMax static load
- 150 kg/mMax dynamic load
- 150 m+Modular length
Model 9012 specifications
Technical detail
| Specification | Value |
|---|---|
| Available standard working width (mm) | 1,058 |
| Slat width (mm) | 1,020 |
| Outside dimension (mm) | 1,093 |
| Slats standard speed | 25 – 30 m/min |
| Conveying height (mm) | Min 400 |
| Max inclination angle (incline / decline) | 9° |
| Maximum operative load | 56 kg/m (average over the entire carousel centre length) |
| Maximum static load | 200 kg/m |
| Maximum dynamic load | 150 kg/m |
| Noise level (empty, constant speed) | ≤ 60 dBA |
| Belt material | Laripur 6325 (flame-retardant) |
| Compliance | CE Machinery Directive · ISO/EN safety standards |
Carousel length is built up from assembled intermediate sectors, in straight and curved runs, to over 150 m. All dimensions in millimetres unless stated. Specifications subject to change without notice.
Heavy duty
Up to 200 kg/m static and 150 kg/m dynamic load capacity, with a 56 kg/m operative average across the entire carousel centre length.
Low noise level
≤ 60 dBA with the conveyor empty at constant speed — quiet enough to stand in a passenger arrivals hall for the length of a bag delivery.
Low power consumption
An efficient drive design reduces energy use across a machine that, on a make-up or reclaim duty, runs for most of the operating day.
High reliability
Engineered for continuous duty to CE Machinery Directive and ISO/EN safety standards, on flame-retardant Laripur 6325 belt material.
Deferred maintenance
Modular construction from repeated sectors reduces the number of distinct spare parts to hold and pushes out the service interval.
Airport baggage handling (BHS)
Make-up carousels for departures, reclaim carousels for arrivals.
Parcel distribution & courier hubs
Collection and preparation points on high-volume parcel lines.
Warehouse & logistics automation
Buffering and presentation across distribution networks.
Manufacturing & packaging lines
Accumulation between process and packaging points.
Technical datasheetPDF · on request
CAD / STEP model3D · on request
Products cataloguePDF · full range
Datasheets and CAD models are supplied on request — send us your project details and our engineers will share the documentation for your configuration.
Combine freely
Related conveyor modules
Every module shares one frame logic and drive concept — build the 9012 into a complete line.
TYPE 9014
Functional Machines
Overlapping Incline Carousel
The inclined counterpart, where the carousel has to change level.
View product
TYPE 9025
Conveyor Modules
Check-in Conveyor Belts
Where the bag enters the system a make-up carousel later receives.
View product
TYPE 9008
Conveyor Modules

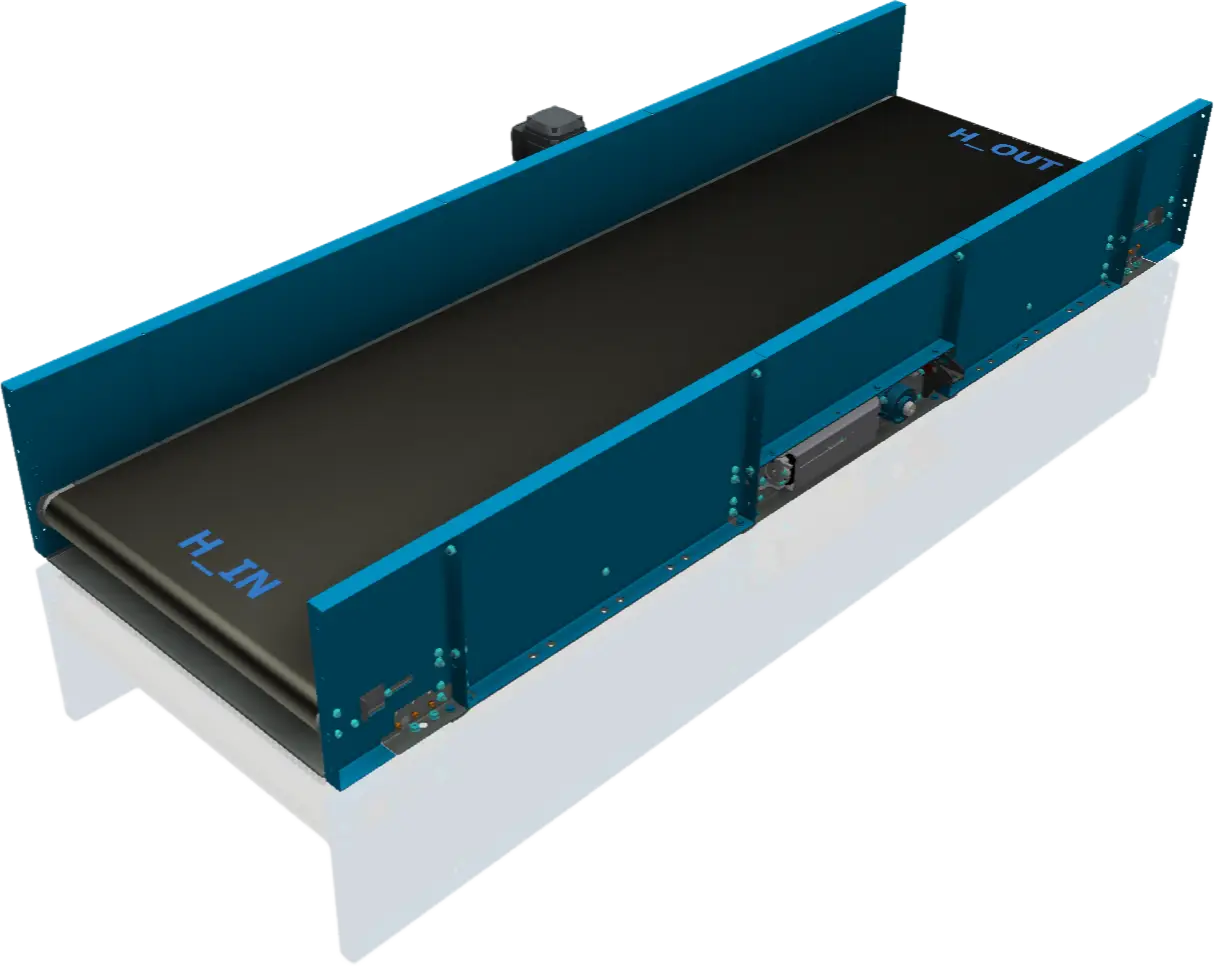

Belt Conveyors CHD
Trunk transport feeding the carousel from screening and sortation.
View product
TYPE 9022
Conveyor Modules

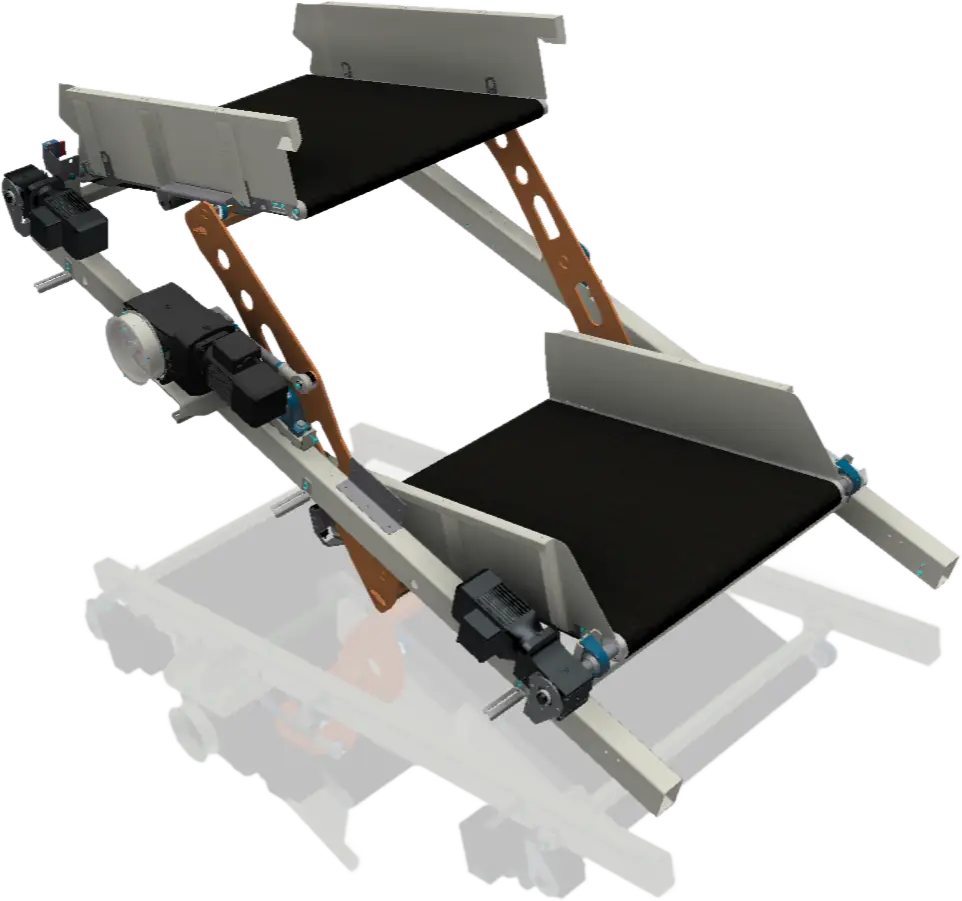

Flat Vertical Sort Diverter
