All-in-one compact unit
Multiple key functions in one compact unit, converting bulk parcel flow into a fully singulated stream without three separate machines in the layout.
6,000 PARCELS/H
Click the image to zoom
Functional Machines · Singulation platform
TYPE 9041
Automatic Parcels Singulator
Bulk flow in, a single gapped file out — in one compact unit.
The APS-2 9041 Automatic Parcel Singulator is one dedicated version within a wider range of singulation solutions, designed to address different system requirements. It combines multiple key functions in one compact unit — converting bulk parcel flow into a fully singulated stream, detecting and separating double items, and creating consistent spacing through dynamic gapping. Shape detection progressively releases items into a single file, so both regular and irregular parcels are handled.
6,000/h
100% mode throughput
3 modes
100 · 75 · 50%
VSU / HSU
Diverter options
1,200 mm
Max parcel length
35 kg
Max parcel weight
≤70 dBA
Noise in operation
Key differentiator
Singulation, double detection and dynamic gapping in a single compact unit — three machines' worth of function in one footprint, scalable to 100%, 75% or 50% of rate to match demand.
All in one unit
Three jobs, one footprint

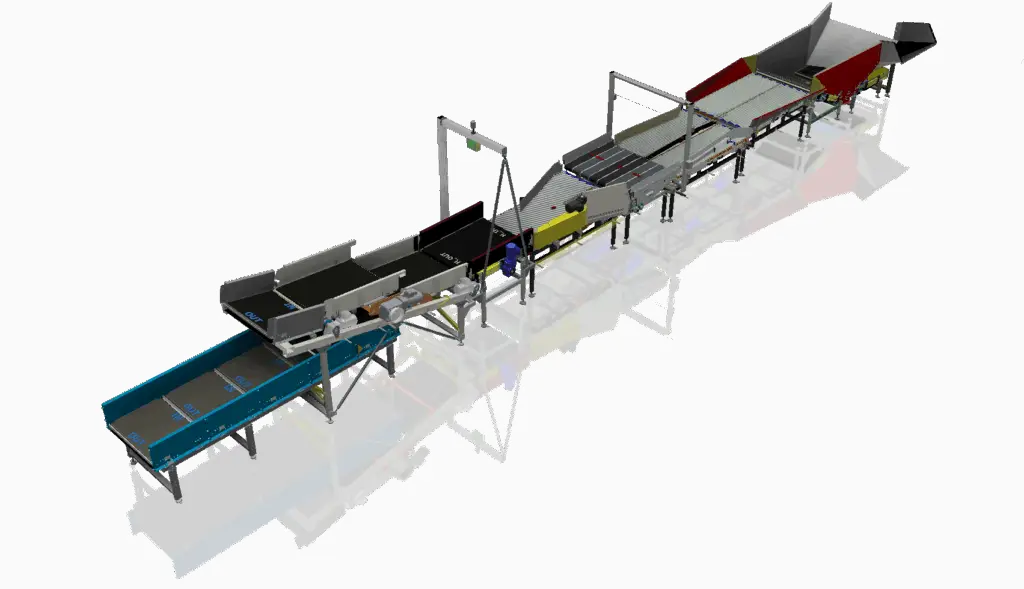

The APS-2 converts bulk parcel flow into a fully singulated stream, detects and separates double items automatically, and creates consistent spacing through dynamic gapping — functions that would otherwise need three separate machines. Shape detection progressively releases items into a single file, so regular and irregular parcels are both handled. Shown here in the vertical diverter (VSU) configuration.
- 1,200Max parcel length (mm)
- 700Max parcel width (mm)
- 35Max parcel weight (kg)
Scalable throughput
Run at the rate the shift actually needs

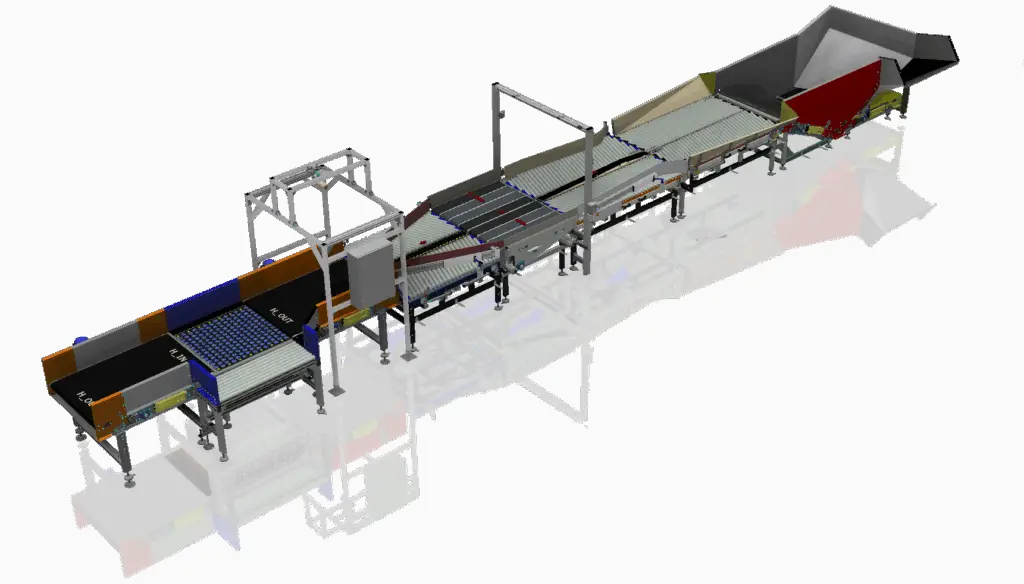

The machine runs in 100%, 75% or 50% mode to match demand — 6,000, 4,500 or 3,000 parcels per hour. Dropping a mode reduces wear and energy draw on shifts that do not need full rate, without reconfiguring the line. Operation stays at ≤ 70 dBA, within an ambient range of 10 °C to 40 °C and up to 90% relative humidity, non-condensing. Shown here with the high-density horizontal diverter (HSU).
- 6,000/h100% mode
- 4,500/h75% mode
- 3000/h50% mode
Model 9041 specifications
Technical detail
Handled parcel envelope
| Dimensions | Maximum | Minimum | Average |
|---|---|---|---|
| Length (mm) | 1,200 | 100 | 300 |
| Width (mm) | 700 | 100 | 250 |
| Height (mm) | 600 | 5 (**) | 190 |
| Weight (kg) | 35 (*) | 0.10 | 3.5 |
Throughput modes
| Mode | 100% | 75% | 50% |
|---|---|---|---|
| Parcels per hour | 6,000 | 4,500 | 3,000 |
Operating conditions
| Specification | Value |
|---|---|
| Operating temperature | 10 °C to 40 °C |
| Relative humidity | Max 90% Rh (non-condensing) |
| Environment | Avoid dusty or smoky atmospheres and direct UV exposure |
| Housekeeping | Remove parts fallen under the modules |
| Noise level in operation | ≤ 70 dBA |
(*) Maximum weight may be limited by parcel footprint. (**) Minimum height applies to flat items detected by shape recognition. All dimensions in millimetres unless stated. Specifications subject to change without notice.
Double detection
Detects and separates double items automatically — available with a vertical diverter (VSU) or a high-density horizontal diverter (HSU).
Dynamic gapping
Creates consistent spacing between items through dynamic gapping, so the downstream scanner and sorter receive a predictable stream.
Parcel compatibility
Suitable for both regular and irregular parcels — shape detection progressively releases items into a single file rather than forcing a uniform footprint.
Scalable throughput
Runs at 100%, 75% or 50% mode to match demand — 6,000, 4,500 or 3,000 parcels per hour, without reconfiguring the line.
One of a wider range
The APS-2 is a dedicated version within a wider range of singulation solutions, designed to address different system requirements.
Bulk parcel infeed
Taking an unordered bulk flow and turning it into a single file.
Double detection & separation
Removing doubles before they reach the scanner, via VSU or HSU.
Gapping ahead of sortation
Setting the spacing the sorter needs to make every decision cleanly.
Diverter integration
Feeding a vertical (VSU) or high-density horizontal (HSU) diverter.
Technical datasheetPDF · on request
CAD / STEP model3D · on request
Products cataloguePDF · full range
Datasheets and CAD models are supplied on request — send us your project details and our engineers will share the documentation for your configuration.
