Functional Machines · Carousel platform
TYPE 9014
Incline Overlapping Carousel
A closed ring on shaped slats — reclaim or make-up, with buffering built in.

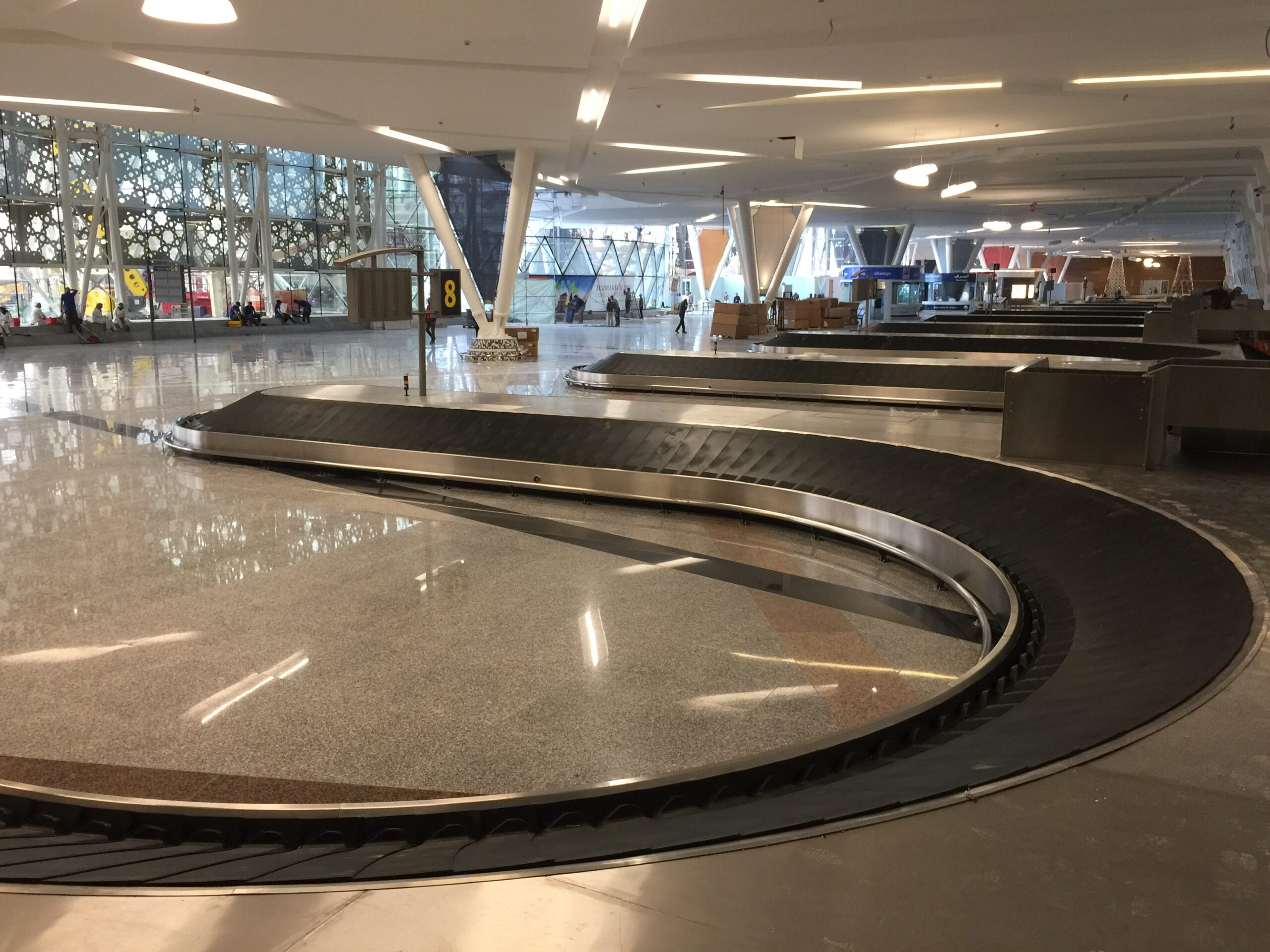

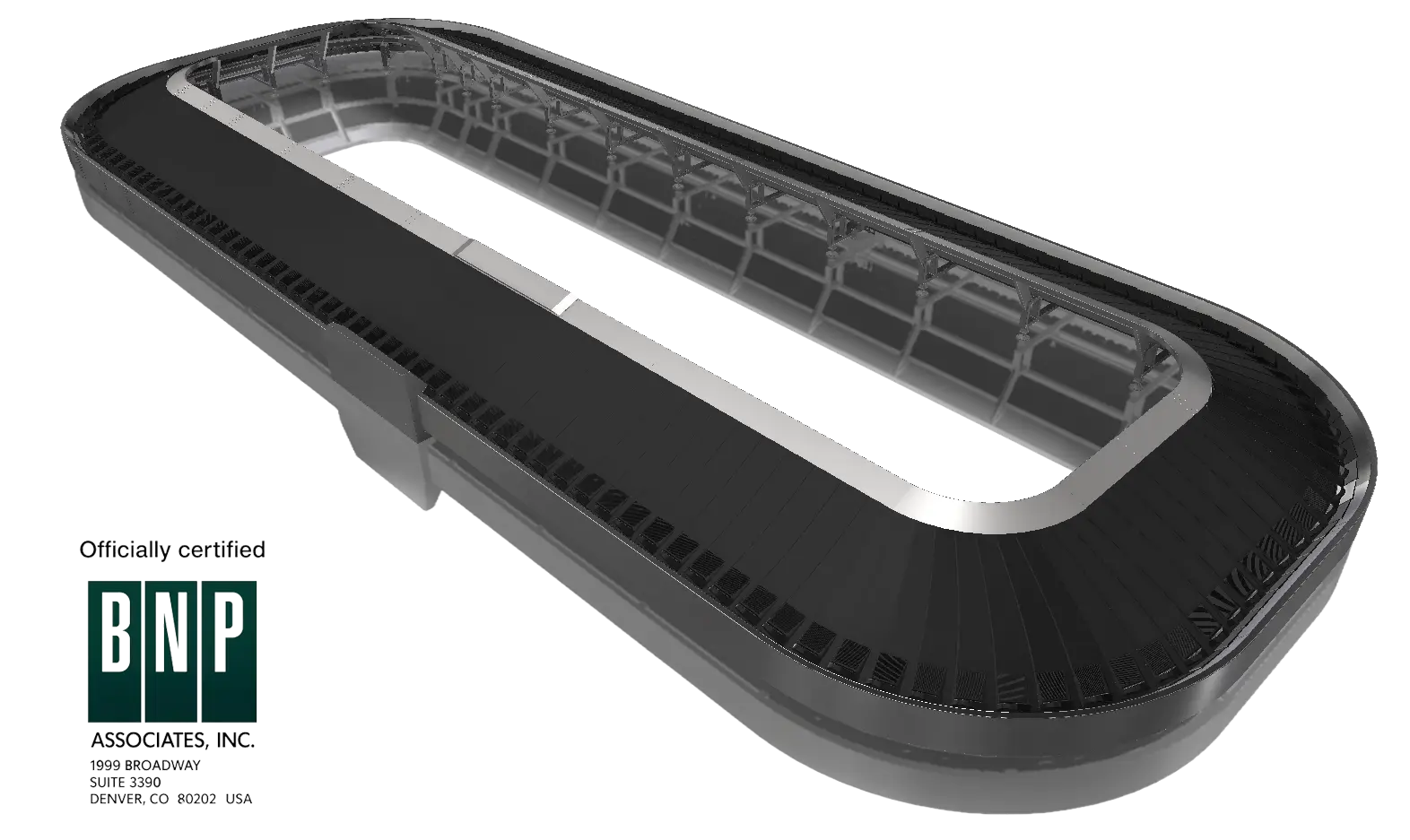

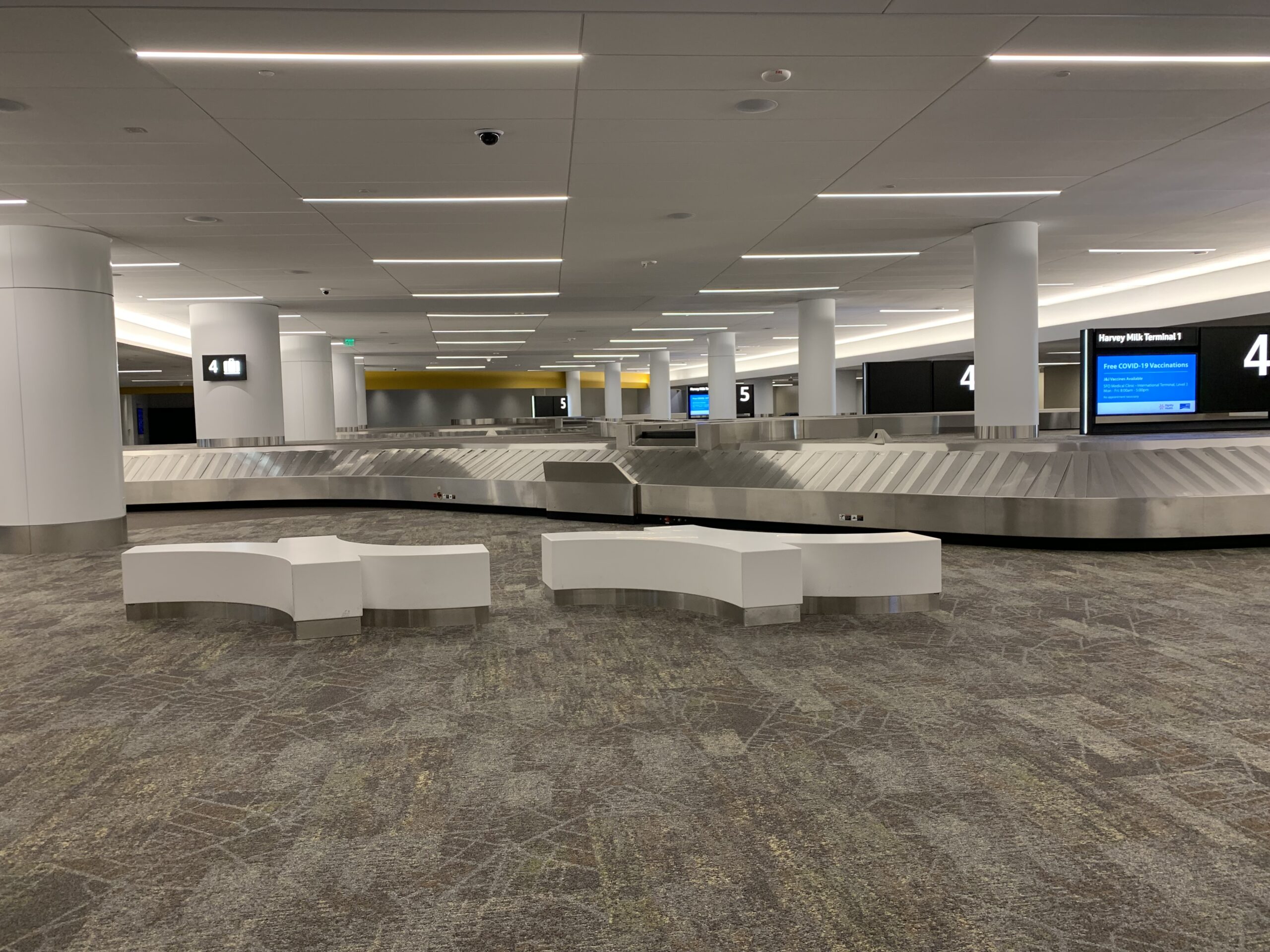

The Incline Overlapping Carousel Type 9014 is a robust and reliable machine designed to meet the performance requirements of a modern sorting plant. Carousels are routinely used within baggage handling systems, and these incline units feature closed rings conveying baggage on specially shaped slats — functioning in baggage reclaim and make-up flight operations as an alternative to pier conveyors, for enhanced buffering. Designed as modular units, longer configurations use additional intermediate sectors.
1,454 mm
Working width
1,204 mm
Slat width
78 kg/m
Operative load
200 kg/m
Max static load
≤60 dBA
Noise level
9°
Max incline / decline
Key differentiator
A closed ring on inclined, specially shaped slats — an alternative to pier conveyors that buffers bags on the carousel itself, at 1,454 mm working width and a 78 kg/m operative load.
Closed ring, shaped slats
An alternative to the pier conveyor
These incline carousels are closed rings conveying baggage on specially shaped slats, working in both baggage reclaim and make-up flight operations. Used in place of a pier conveyor they give enhanced buffering — bags hold on the carousel itself instead of backing up the line. Slats 1,204 mm wide run at 25–30 m/min across a 1,454 mm working width, from a minimum conveying height of 450 mm.
- 1,454Working width (mm)
- 1,204Slat width (mm)
- 25–30Slat speed (m/min)
Heavy duty, modular
Built for the load, extended by the sector
The carousel carries up to 200 kg/m static and 150 kg/m dynamic load, with a 78 kg/m operative average across the entire centre length — and handles inclines and declines to 9° where the reclaim hall and the baggage hall sit on different levels. Designed as modular units, longer configurations simply use additional intermediate sectors. It runs at ≤ 60 dBA empty at constant speed, on flame-retardant Laripur 6325 belt material.
- 200 kg/mMax static load
- 150 kg/mMax dynamic load
- 9°Max incline / decline
Model 9014 specifications
Technical detail
| Specification | Value |
|---|---|
| Available standard working width (mm) | 1,454 |
| Slat width (mm) | 1,204 |
| Outside dimension (mm) | 1,526 |
| Slats standard speed | 25 – 30 m/min |
| Conveying height (mm) | Min 450 |
| Max inclination angle (incline / decline) | 9° |
| Maximum operative load | 78 kg/m (average over the entire carousel centre length) |
| Maximum static load | 200 kg/m |
| Maximum dynamic load | 150 kg/m |
| Noise level (empty, constant speed) | ≤ 60 dBA |
| Belt material | Laripur 6325 (flame-retardant) |
| Compliance | CE Machinery Directive · ISO/EN safety standards |
Longer carousel configurations use additional intermediate sectors. All dimensions in millimetres unless stated. Specifications subject to change without notice.
